Strain Gauge Rosette Calculator

Author
: Maplesoft AuthorSamir Khan
0
Engineering software solutions from Maplesoft
 Download
 PDF Preview
This Application runs in Maple Flow. Don't have Maple Flow? No problem!
 Try Maple Flow free for 15 days!

This application calculates the following quantities for a strain gauge rosette:

  • normal and shear strains
  • average strain
  • maximum and minimum principal stresses

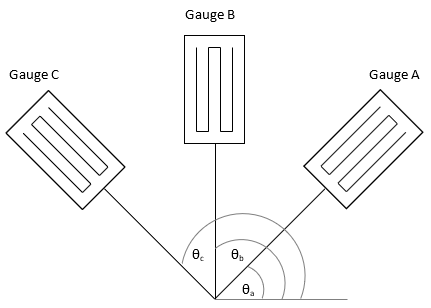

You can specify the measured strains, angles of the gauges with respect to the horizontal axis, elastic modulus and shear strain

Application Details

Publish Date: October 31, 2022
Created In: Maple Flow 2021
Language: English
