Sensor interface design with Worst case analysis - Volume 2

Author
: Maplesoft AuthorTakashi Iwagaya
Engineering software solutions from Maplesoft
This Application runs in Maple Flow. Don't have Maple Flow? No problem!
 Try Maple Flow free for 15 days!

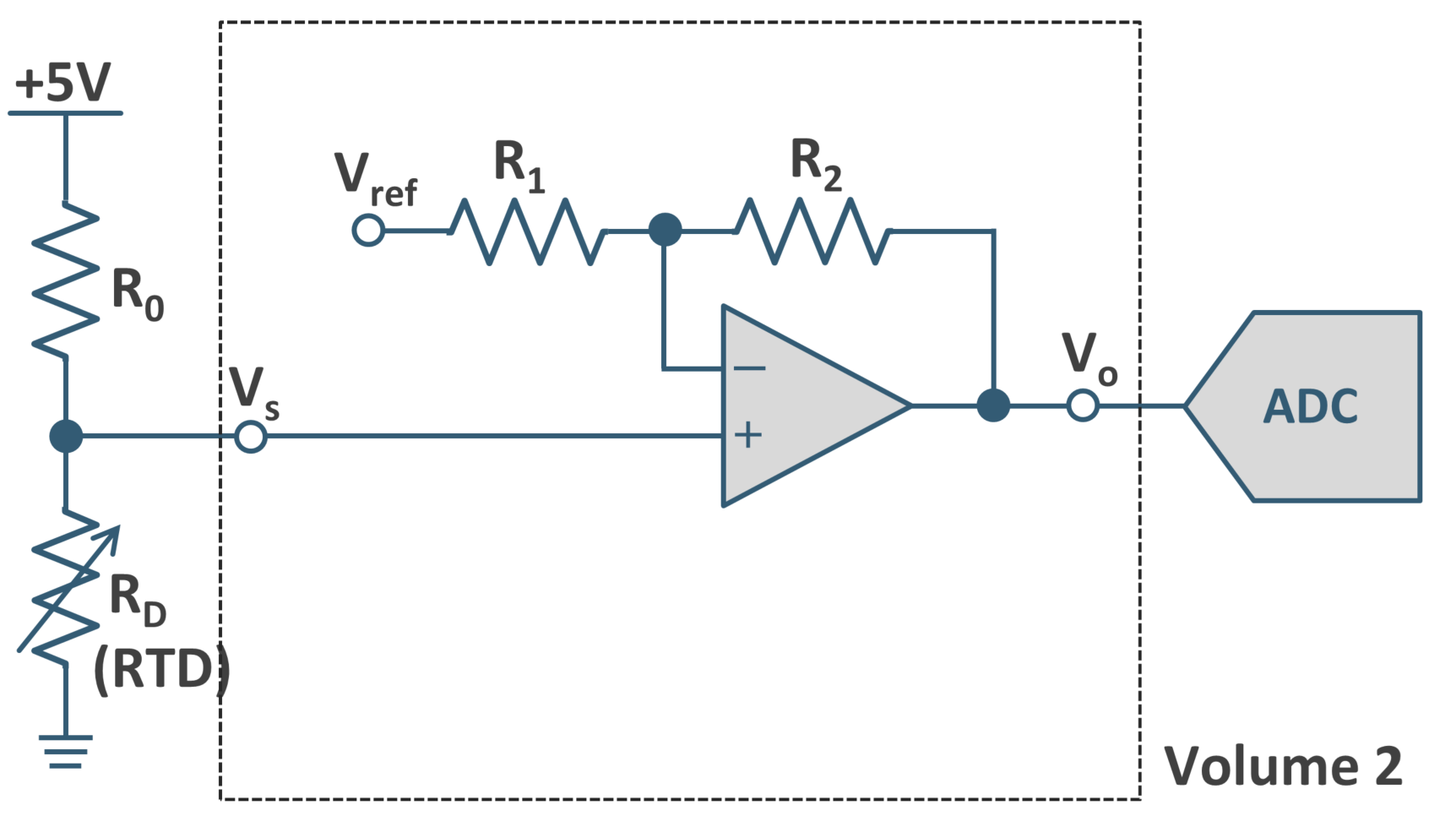

In this application, the worst case analysis for the temperature sensor interface circuit is performed. The circuit consists of a thin film Resistance Temperature Detector (RTD), op-amp and other passive devices in order to convert temperature to voltage and adjust voltage to the input voltage range of AD converter. This worksheet shows how to select a circuit to adjust the input voltage for AD converter with the worst case analysis as volume 2.
