Solution via Context Panel
|
Tools≻Load Package: Student Precalculus
|
Loading Student:-Precalculus
|
Slope
|
•
|
Context Panel: Student Precalculus≻Lines And Segments≻Slope
|
|
|
Midpoint
|
•
|
Context Panel: Student Precalculus≻Lines And Segments≻Midpoint
|
|
|
Length of line segment (distance between endpoints)
|
•
|
Context Panel: Student Precalculus≻Lines And Segments≻Distance
|
|
|
Equation of line
|
•
|
Context Panel: Student Precalculus≻Lines And Segments≻Line≻Equation
|
|
|
|
|
There are Task templates for each of these tasks, obtained with the following paths:
In addition there are Task templates for the point-slope and slope-intercept forms of the straight line:
For example, with the template for the distance between two points, we obtain
Distance between Two Real Points
|
Enter points as lists or vectors:
|
Point 1:
|
Point 2:
|
=
|
|
|
|
Similarly, with the template for the equation of a line through two points, we obtain
Compute the Equation of the Line Passing through 2 Points
|
Enter the first point:
|
|
Enter the second point:
|
|
Compute the equation of the line passing through the two points:
|
>
|
|
| (3) |
|
|
|
The functionality of the Line command is captured in the

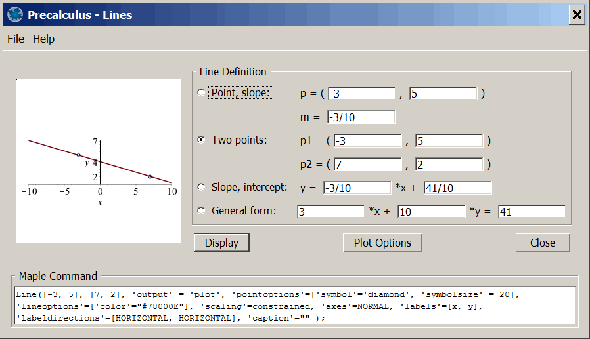

tutor in the Precalculus grouping of tutors. Figure A-6.1(a) provides a screenshot of the Line tutor initialized for this example.
|
Figure A-6.1(a) Line tutor initialized for this example
|
|
|
