Obtain the graph in Figure A-9.1(a), a graph of sinx as a black curve, and cosx as a red curve.
Impose 1-to-1 scaling on the axes, and ensure that the axes are labeled as x and y.
Label the horizontal axis in multiples of π/4 and the vertical axis with just three values (−1,0,1).

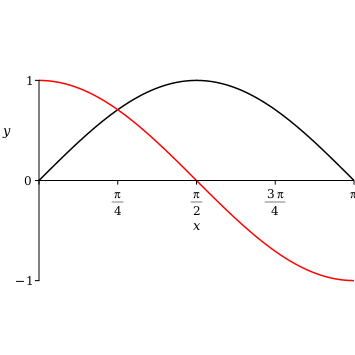

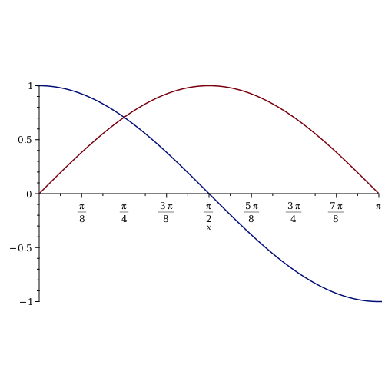

Figure A-9.1(a) Graph of sinx (black) and cosx (red)
Maple Solution - Interactive
Solution via Plot Builder
Write a sequence of the two given functions.
Context Panel: Plot Builder≻Edit (either button)
Basic Options: Set x-range
Global Options: View: axis set x-range
2-D Options: Scaling = constrained
Alternatively, launch the Plot Builder with sinx and cosx embedded by clicking
. (The Preview and Options buttons will work, but no graph will be embedded in this worksheet.)

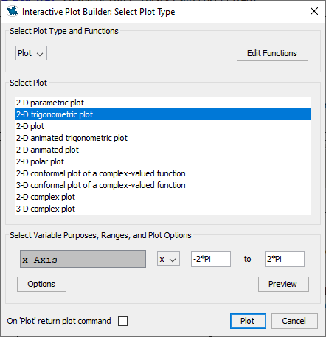

Figure A-9.1(b) Initial pane for the Interactive Plot Builder
Figure A-9.1(c) Edited range in the Plot Builder
Select 2-D trigonometric plot.
The default interval for trig functions is −2 π,2 π, which is easily edited to 0,π. See Figures A-9.1(b-c).
Click the Options button to access the plot options. To make changes that affect both curves, select "Global Defaults & Settings" in the drop-down box at the top-left of the Options panel.
Add the Label "y" in the Range from/to line.
Check the box for Constrained Scaling.
See Figure A-9.1(d).
The horizontal axis is automatically labeled in multiples of π for trig functions. This can be adjusted as follows.
In the Axes section, select Advanced Settings and in the Advanced Axis Settings dialog, use the Tickmarks drop-down for x to select "spacing(Pi,0)" in which Pi can be changed to Pi/4. Change the Tickmarks from "default" to 3 for the other axis, and click the Apply button. See Figure A-9.1(e).

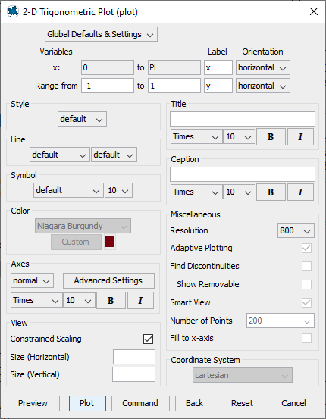

Figure A-9.1(d) Options panel after changes made

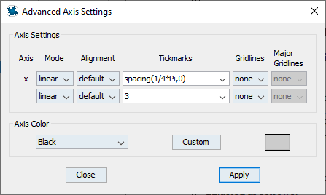

Figure A-9.1(e) Advanced Axis Settings panel
Clicking the Close button returns focus to the Options pane.
Change "Global Defaults & Settings" to an individual function to change the color of its graph.
Click the Preview button to see the state of the graph at any time.
Maple Solution - Coded
The following version of the plot command will draw the graph in Figure A-9.1(a).
