Terrain



DeleteNoise



delete noise from the terrain data points



Calling Sequence

Parameters

Description

Examples

Calling Sequence

DeleteNoise(T, opts)

T:-DeleteNoise(opts)

Parameters

T

-

Terrain; the Terrain object

Description

The DeleteNoise method deletes the noise added to the terrain data points by the AddNoise method.

Examples

withTires:

Define the terrain equation.

eq0.1tanhx5tanhx30:

Generate a Terrain object using the defined equation. Select the z-axis as the up direction. The order of the two independent variables is [x,y]. Assign the range for x to be -10 to 100, and for y to be -10 to 10. Also, assign 50 grid points for the x-axis and 10 for the y-axis. Finally, set the title to myTerrain.

terrainGenerateTerraineq,10..100,10..10,50,10,up_direction=z,title=myTerrain:

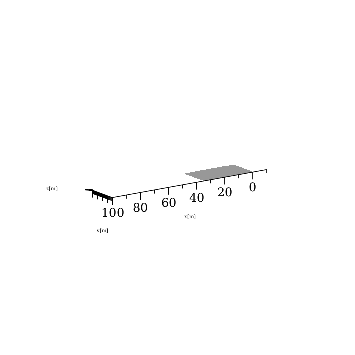

Plot the generated terrain.

terrain:-Plot

Add some unevenness to the terrain.

terrain:-AddNoise0.1,size=2,2:

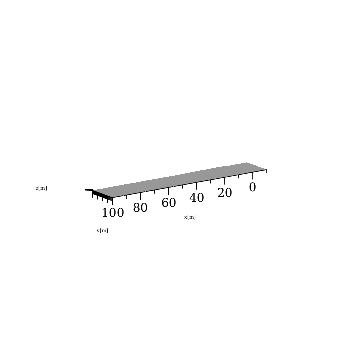

Plot the new terrain data points.

terrain:-Plot

Not happy with the unevenness, delete the noise.

terrain:-DeleteNoise:

Plot the terrain again.

terrain:-Plot

See Also

AddNoise

Terrain

Tires
