Graph a polygonal line through the points 1,2,3,7,4,−2.
Maple Solution - Interactive
To obtain Figure A-9.8(a) interactively, create a degree-one spline via the Curve Fitting Assistant.
Type the list of points 1,2,3,7,4,−2
Curve Fitting≻Interactive Curve Fitting≻x (as variable)
Splines≻ Degree of the spline: 1
On 'Done" return Plot
(See Figure A-9.8(b).)
p1:=plot([[1, 2], [3, 7], [4, -2]],style=line,color=red):
p2:=plot([[1, 2], [3, 7], [4, -2]],style=point,color=black,symbol=solidcircle,symbolsize=20):
Figure A-9.8(a) Polygonal line through given points

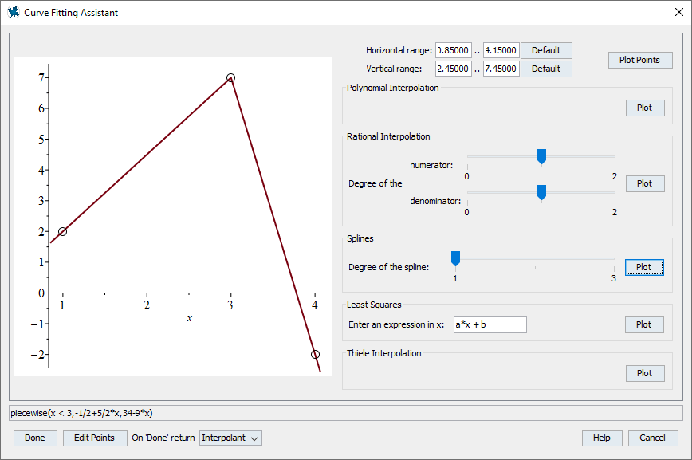

Figure A-9.8(b) Use of the Curve Fitting Assistant to obtain a polygonal line as a degree-one spline
Although the Curve Fitting Assistant is most easily launched from the Context Panel, to launch it for this example you can also press:
The Plot Builder alternative:
Write a list of given points.

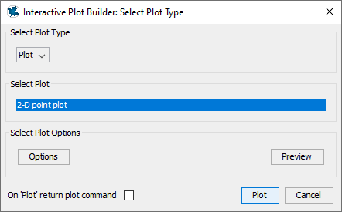

Context Panel: Plots≻Plot Builder
Press the Options button (See the figure beneath this cell.)

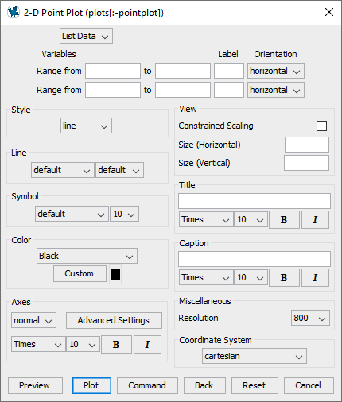

In the Options pane, change Style to line.
(See the figure diagonally down from this cell.)
Press the Plot button to obtain the graph shown to the right.
Maple Solution - Coded
Enter the list of points.
Graph the polygonal line through the points.
Graph the points.
Combine the graphs of the polygonal line and the points.
The display command in the plots package merges any two or more plot data-structures.
