Optimizing the Design of a Helical Spring

Introduction

The design optimization of helical springs is of considerable engineering interest, and demands strong solvers. While the number of constraints is small, the coil and wire diameters are raised to higher powers; this makes the optimization difficult for gradient-based solvers working in standard floating-point precision; a larger number of working digits is needed.



Maple lets you increase the number of digits used in calculations; hence numerically difficult problems like this can be solved.

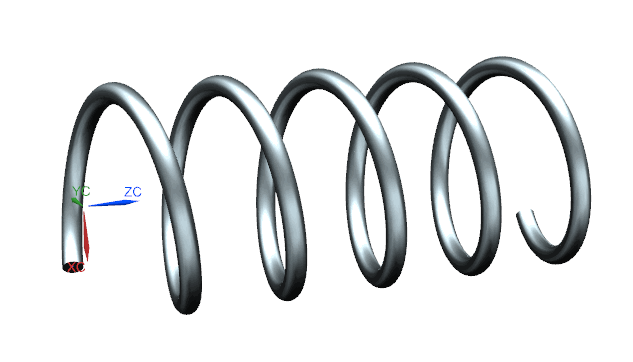

This application minimizes the mass of a helical spring. The constraints include the minimum deflection, the minimum surge wave frequency, the maximum stress, and a loading condition.

The design variables are the diameter of the wire d, the outside diameter of the spring D, and the number of coils N.



Reference: Arora, Jasbir S. Introduction to Optimum Design. 3rd edition. Massachusetts: Academic Press, 2011.



>

restart:local γ:withUnitsSimple:

Parameters

Gravitational constant

>

g≔386 inch s−2:

Weight density of spring material

>

γ≔0.285 lbf  inch−3:

Shear modulus

>

G≔1.15⋅107 lbf inch−2:

Mass density of material

>

ρ≔γg

7890.583227⁢kgm3

(2.1)

Allowable shear stress

>

τ__a≔80000 lbf inch−2:

Number of inactive coils

>

Q≔2:

Applied Load

>

P≔10 lbf:

Minimum spring deflection

>

Δ≔0.5 inch:

Lower limit of surge wave frequency

>

ω__0≔100 Hz:

Limit on outer diameter of coil

>

D__0≔1.5inch:

Engineering Relationships

Spring Constant

>

K≔d4⋅G8⋅D3⋅N

1.44×106⁢d4D3⁢N⁢lbfin2

(3.1)

Shear stress

>

τ≔8⋅k⋅P⋅Dπ⋅d3

τ≔80⁢k⁢Dπ⁢d3⁢lbf

(3.2)

Wahl stress concentration factor

>

k≔4 D−d4⋅D−d+0.615⋅dD

k≔4⁢D−d4⁢D−4⁢d+0.615⁢dD

(3.3)

Frequency of surge waves

>

ω≔d2⋅Pi⋅N⋅D2⋅G2⋅ρ

356.746⁢dN⁢D2⁢ms

(3.4)

Constraints

Minimum deflection

>

cons1≔PK≥Δ

500.00×10-3≤176.70×10-9⁢D3⁢Nd4⁢m

(4.1)

The outer diameter of the spring should be smaller than or equal to D0.

>

cons2≔D+d≤D__0

D+d≤38.10×10-3⁢m

(4.2)

Avoid resonance by making the frequency of surge waves along a spring greater than a minimum defined value.

>

cons3≔ω≥ω__0

100.00≤356.75⁢dN⁢D2⁢m

(4.3)

The shear stress cannot exceed the allowable shear stress.

>

cons4≔τ≤τ__a

80.00⁢4.00⁢D−d4.00⁢D−4.00⁢d+615.00×10-3⁢dD⁢Dπ⁢d3≤124.00×106⁢1m2

(4.4)

Collect all  the constraints

>

cons≔cons1,cons2,cons3,cons4:

Objective function

Mass of spring

>

mass≔14⋅N+Q⋅π2⋅D⋅d2⋅ρ

77876.93497⁢N4+12⁢D⁢d2⁢kgm3

(5.1)

Optimization

>

bounds≔N=2..15,d=0.05inch..2inch,D=0.25inch..D__0:



Hence the optimized design variables are

>

Digits≔20: results≔Optimization:-Minimizemass,cons,bounds,iterationlimit=105:


The optimized spring has a weight of

>

results1

8.92×10-3⁢lb

(6.1)

and dimensions of

>

results2

D=356.88×10-3⁢in,N=11.29,d=51.70×10-3⁢in

(6.2)
>
