plottools



reflect



reflecting PLOT and PLOT3D data structures



Calling Sequence

Parameters

Description

Representation

Examples

Calling Sequence

reflect(p, pt_2d)

reflect(p, [pt_2d, pt_2d])

reflect(q, pt_3d)

reflect(q, [pt_3d, pt_3d])

reflect(q, [pt_3d, pt_3d, pt_3d])

Parameters

p

-

PLOT data structure or a 2-D object

q

-

PLOT3D data structure or a 3-D object

pt_2d

-

(optional) list of two real numbers specifying a point in 2-D

pt_3d

-

(optional) list of three real numbers specifying a point in 3-D

Description

•

The reflect command takes a plot structure or object and produces a new plot structure or object.

•

In the 2-D case, an object can be reflected with respect to either a given point or a given line.

•

In the 3-D case, an object can be reflected with respect to a point, a line, or a plane.

•

The result of a call to reflect is a 2-D or 3-D plot structure or object, which may be displayed with the plots:-display command. You can assign the data structure to a variable, save it in a file, then read it back in for redisplay.  For more information about plot data structures, see plot/structure.

•

Several commands in the plottools package can transform plots. For a list, see the plottools help page.  The plots:-changecoords and plots:-display commands can also be used to transform plots.

Representation



A point is represented as a list of either two real numbers (2-D) or three real numbers (3-D).



A line is represented as a list of two distinct points.



A plane is represented as a list of three distinct points.

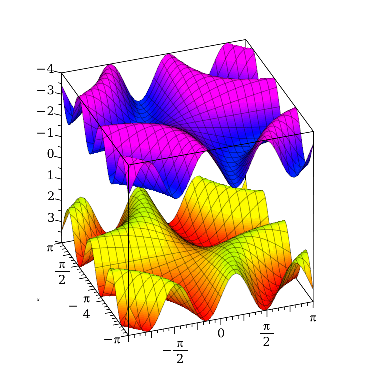

Examples
