Multi Prescribed Heat Flow

Multiple prescribed heat flow boundary condition

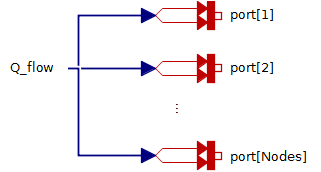

 Description The Multi Prescribed Heat Flow component generates a heat flow proportional to an input signal. The following example uses Prescribed Heat Flow components to illustrate the behavior of Multi Prescribed Heat Flow component.
 Equations (For details, see Prescribed Heat Flow  help).

Connections

 Name Units Condition Description Modelica ID $\mathrm{port}\left[i\right]$ i-th output heat port port[] ${Q}_{\mathrm{flow}}$ Real input; heat flow in $W$ Q_flow

Parameters
