Multi Conductor

Multiple Thermal Conductors

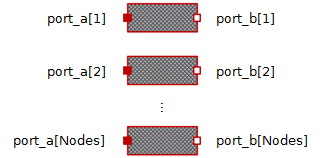

 Description The Multi Conductor component models multiple Thermal Conductors. The total number of Thermal Conductor components is determined by the $\mathrm{Nodes}$ parameter. The following image is an example with Thermal Conductor components to explain the behavior of Multi Conductor component.
 Equations (For details, see Thermal Conductor  help).
 Variables (For details, see Thermal Conductor  help).

Connections

 Name Units Condition Description Modelica ID $\mathrm{port_a}\left[i\right]$ i-th thermal port, a port_a[i] $\mathrm{port_b}\left[i\right]$ i-th thermal port, b port_b[i]

Parameters

 Symbol Default Units Description Modelica ID $\mathrm{Material}$ $\mathrm{SolidPropertyData}$ $-$ Solid material property data for each Thermal Conductor Material $\frac{W}{m\cdot K}$ Material.k is the thermal conductivity of the material Material.k $\frac{J}{\mathrm{kg}\cdot K}$ Material.cp is the specific heat capacity of the material Material.cp $\frac{\mathrm{kg}}{{m}^{3}}$ Material.rho is the density of the material Material.rho $A$ $1$ ${m}^{2}$ Area of the contact surface between nodes for each Thermal Conductor A $L$ $1$ $m$ Distance between nodes for each Thermal Conductor L $\mathrm{Nodes}$ $2$ $-$ Number of nodes numNode
