Variable Thermal Conductor

Multiple Variable Thermal Conductor with normalized contact area ratio of each node, input from real vector signals.

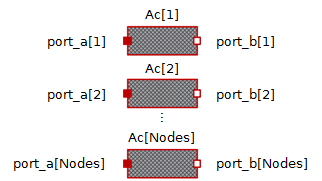

 Description The Variable Thermal Conductor component is used for connecting two Multi- components. This component can take account of normalized contact area ratio between and input from real vector signal, $\mathrm{Ac}$. The following image illustrates the behavior of the Variable Thermal Conductor component.
 Equations ${Q}_{\mathrm{flow}}\left[i\right]=G\left[i\right]\cdot \mathrm{dT}\left[i\right]$ Heat conductance $\mathrm{G__off}$ is used for the heat path without heat flow. (For details, see Thermal Conductor help).

Variables

 Symbol Units Description Modelica ID ${Q}_{\mathrm{flow}}\left[i\right]$ $W$ i-th heat flow rate from port a to port b Q_flow[] $\mathrm{dT}\left[i\right]$ $K$ i-th temperature difference between port a[i] and port b[i] dT[] $G\left[i\right]$ $\frac{W}{K}$ i-th constant thermal conductance of material G[]

(For details, see Thermal Conductor  help).

Connections

 Name Units Condition Description Modelica ID $\mathrm{port_a}\left[i\right]$  i-th thermal port of port a side The total number of i is determined by Nodes of a port_a[] $\mathrm{port_b}\left[i\right]$ i-th thermal port of port b side The total number of i is determined by Nodes of b port_b[] $\mathrm{Ac}\left[i\right]$ Coefficient of normalized contact area ratio (0 to1) The total number of i is determined by Nodes Ac[]

Parameters

 Symbol Default Units Description Modelica ID $\mathrm{Material}$  $-$ Solid material property data Material $\frac{W}{m\cdot K}$ Material.k is the thermal conductivity of the material Material.k $\frac{J}{\mathrm{kg}\cdot K}$ Material.cp is the specific heat capacity of the material Material.cp $\frac{\mathrm{kg}}{{m}^{3}}$ Material.rho is the density of the material Material.rho $\mathrm{Nodes}$ 2 Number of nodes $\mathrm{numNode}$ $A$ $1$ ${m}^{2}$ Area of Thermal Conductor for each node A $L$ $1$ ${m}^{}$ Distance of ThermalConduct for each node L $\mathrm{G__off}$ ${10}^{-7}$ $\frac{W}{K}$ Optional. Constant thermal conductance of material which is used for representing the path without heat flow Goff
