SignalProcessing

 ComplexCepstrum
 compute the complex cepstrum of the signal

 Calling Sequence ComplexCepstrum(A)

Parameters

 A - Array of real numeric values; the signal

Description

 • The ComplexCepstrum(A) command uses the Fourier transform to compute the complex cepstrum of a signal and the number of samples of delay.
 • A must be an one-dimensional Array and must contain real numbers only.

Examples

 > $\mathrm{with}\left(\mathrm{SignalProcessing}\right):$
 > $\mathrm{f1}≔12.0:$
 > $\mathrm{f2}≔20.0:$
 > $\mathrm{Fs}≔1000:$
 > $\mathrm{signal}≔\mathrm{Vector}\left({2}^{10},i↦\mathrm{sin}\left(\frac{2\cdot \mathrm{f1}\cdot \mathrm{\pi }\cdot i}{\mathrm{Fs}}\right)+1.5\cdot \mathrm{sin}\left(\frac{2\cdot \mathrm{f2}\cdot \mathrm{\pi }\cdot i}{\mathrm{Fs}}\right),'\mathrm{datatype}'='\mathrm{float}\left[8\right]'\right):$
 > $t≔\mathrm{Vector}\left({2}^{10},i↦\frac{1.0\cdot i}{\mathrm{Fs}},'\mathrm{datatype}'='\mathrm{float}\left[8\right]'\right):$
 > $c,\mathrm{nd}≔\mathrm{ComplexCepstrum}\left(\mathrm{signal}\right)$

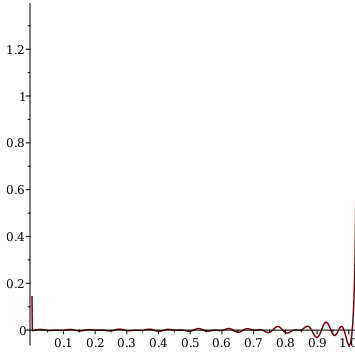

 > $\mathrm{plot}\left(t,c\right)$

Compatibility

 • The SignalProcessing[ComplexCepstrum] command was introduced in Maple 2019.
 • For more information on Maple 2019 changes, see Updates in Maple 2019.
